Kia Sorento: Components (1)
Second Generation XM (2011-2024) / Kia Sorento XM 2011-2024 Service Manual / Restraint / Components (1)

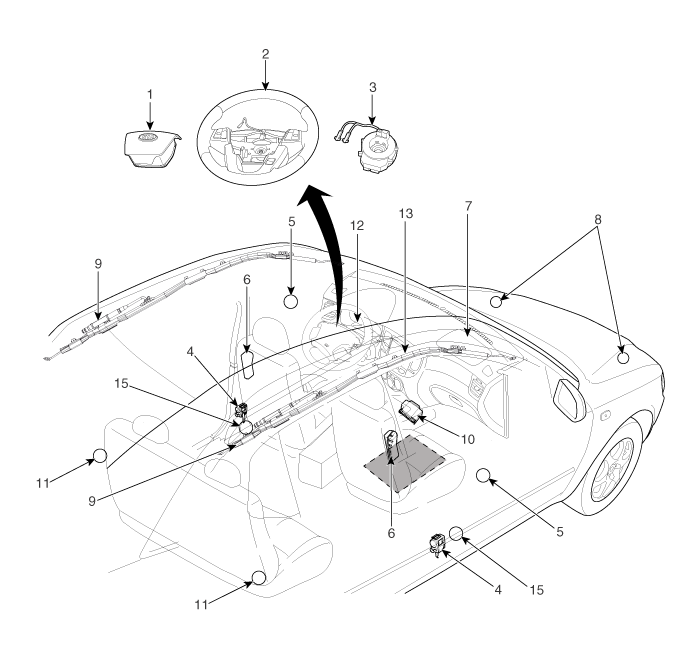

| 1. Driver Airbag (DAB) 2. Steering Wheel 3. Clock Spring 4. Seat Belt Pretensioner (BPT) 5. Front Side Impact Sensor (FSIS) 6. Side Airbag (SAB) 7. Passenger Airbag (PAB) 8. Front Impact Sensor (FIS) |
9. Curtain Airbag (CAB) 10. Supplemental Restraint System Control Module(SRSCM) 11. Rear Side Impact Sensor (RSIS) 12. Airbag Warning Lamp 13. Telltale lamp 14. Occupant Detection System (ODS) 15. Emergency Fastening Device (EFD) |
Component Replacement After Deployment
Before doing any SRS repairs, use the GDS Pro to check for DTCs.
Refer to the Diagnostic Trouble Code list for repairing ...
Components Location
Supplemental Restraint System Control
Module (SRSCM)
Driver Airbag (DAB) / Passenger Airbag
(PAB)
Side Airbag (SAB)
Curtain Airbag (CA ...
