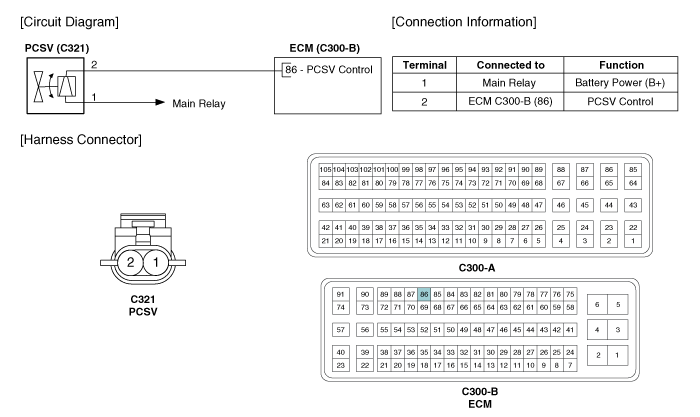

Kia Sorento: Circuit Diagram

Specification

Item Specification Coil Resistance (Ω) 19.0 ~ 22.0 [20°C(68°F)] ...

Inspection

1. Turn the ignition switch OFF. 2. Disconnect the PCSV connector. 3. Measure resistance between the PCSV termi ...
