Kia Sorento: Component Location (1)
Second Generation XM (2011-2025) / Kia Sorento XM 2011-2025 Service Manual / Body Electrical System / Power Tailgate Module / Component Location (1)

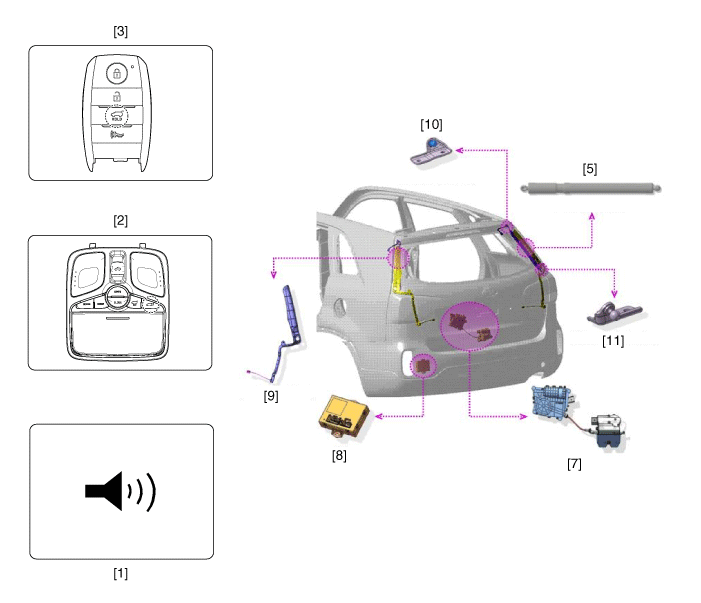

| 1. Buzzer 2. Console S/W 3. RKE 4. Anti Pinch Strip 5. Spindle Drive |
6. Tailgate Trim Switch 7. Power Latch 8. PTG Control Module 9. Anti Pinch Strip 10. Body Side Bracket 11. Lifter Side Bracket |
