Kia Sorento: Cruise control system

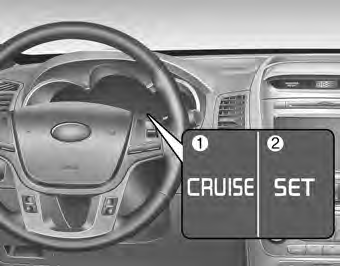

1. Cruise indicator

2. Cruise set indicator

The cruise control system allows you to program the vehicle to maintain a constant speed without pressing the accelerator pedal.

This system is designed to function above approximately 25 mph (40 km/h).

WARNING

• If the cruise control is left on (CRUISE indicator light in the instrument cluster illuminated), the cruise control can be switched on accidentally. Keep the cruise control system off (CRUISE indicator light OFF) when the cruise control is not in use, to avoid inadvertently setting a speed.
• Use the cruise control system only when traveling on open highways in good weather.
• Do not use the cruise control when it may not be safe to keep the vehicle at a constant speed, for instance, driving in heavy or varying traffic, or on slippery (rainy, icy or snow covered) or winding roads or over 6% up-hill or down-hill roads.
• Pay particular attention to the driving conditions whenever using the cruise control system.
• Be careful when driving downhill using the cruise control system, which may increase the vehicle speed.

✽ NOTICE

• During normal cruise control operation, when the SET switch is activated or reactivated after applying the brakes, the cruise control will energize after approximately 3 seconds. The delay is normal.
• To activate cruise control, depress the brake pedal at least once after turning the ignition switch to the ON position or starting the engine. This is to check if the brake switch which is important part to cancel cruise control is in normal condition.

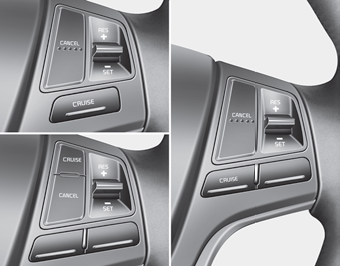

Cruise control switch

CRUISE :

Turns cruise control system on or off.

CANCEL:

Cancels cruise control operation.

RES+:

Resumes or increases cruise control speed.

SET-:

Sets or decreases cruise control speed.

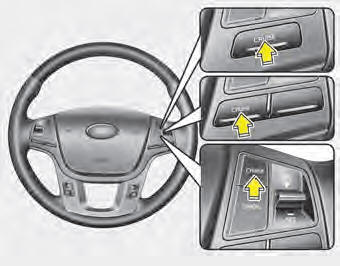

To set cruise control speed:

1. Press the CRUISE button on the steering wheel to turn the system on. The CRUISE indicator light in the instrument cluster will illuminate.

2. Accelerate to the desired speed, which must be more than 25 mph (40 km/h).

3. Move the lever down (to SET-), and release it at the desired speed. The SET indicator light in the instrument cluster will illuminate.

Release the accelerator pedal at the same time. The desired speed will automatically be maintained.

On a steep grade, the vehicle may slow down or speed up slightly while going uphill or downhill.

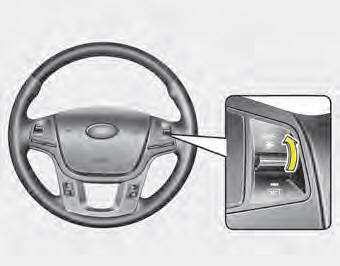

To increase cruise control set speed:

Follow either of these procedures:

• Move the lever up (to RES+) and hold it.Your vehicle will accelerate. Release the lever at the speed you want.
• Move the lever up (to RES+) and release it immediately. The cruising speed will increase by 1 mph (or 2km/h) each time you move the lever up (to RES+) in this manner.

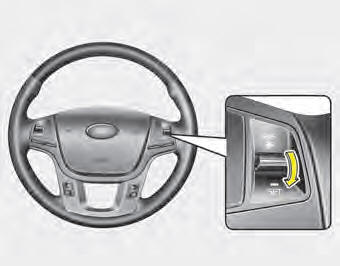

To decrease the cruising speed:

Follow either of these procedures:

• Move the lever down (to SET-) and hold it. Your vehicle will gradually slow down. Release the lever at the speed you want to maintain.
• Move the lever down (to SET-) and release it immediately. The cruising speed will decrease by 1 mph (1.6 km/h) each time you move the lever down (to SET-) in this manner.

To temporarily accelerate with the cruise control on:

If you want to speed up temporarily when the cruise control is on, depress the accelerator pedal. Increased speed will not interfere with cruise control operation or change the set speed.

To return to the set speed, take your foot off the accelerator.

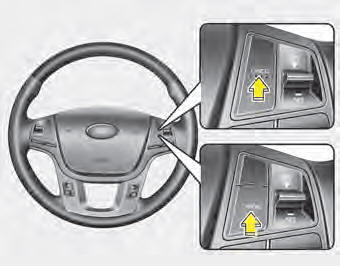

To cancel cruise control, do one of the following:

• Press the brake pedal.
• Shift into N (Neutral) with an automatic transaxle.
• Push the CANCEL switch located on the steering wheel.
• Decrease the vehicle speed lower than the memory speed by 9 mph (15 km/h).
• Decrease the vehicle speed to less than approximately 25 mph (40 km/h).

Each of these actions will cancel cruise control operation (the SET indicator light in the instrument cluster will go off), but it will not turn the system off. If you wish to resume cruise control operation, push the RES + switch located on your steering wheel.You will return to your previously preset speed.

To resume cruising speed at more than approximately 25 mph (40 km/h):

If any method other than the CRUISE button was used to cancel cruising speed and the system is still activated, the most recent set speed will automatically resume when you move the lever up (to RES+).

It will not resume, however, if the vehicle speed has dropped below approximately 25 mph (40 km/h).

To turn cruise control off, do one of the following:

• Press the CRUISE button (the CRUISE indicator light in the instrument cluster will go off).
• Turn the ignition off.

Both of these actions cancel cruise control operation. If you want to resume cruise control operation, repeat the steps provided in “To set cruise control speed” on the previous page.
