A driver position memory system is provided to store and recall the driver seat and outside rearview mirror position with a simple button operation.
By saving the desired position into the system memory, different drivers can reposition the driver seat based upon their driving preference.
If the battery is disconnected, the desired seat position memory will need to be re-saved.
WARNING
Never attempt to operate the driver position memory system while the vehicle is moving. This could result in loss of control, and an accident causing death, serious injury, or property damage.

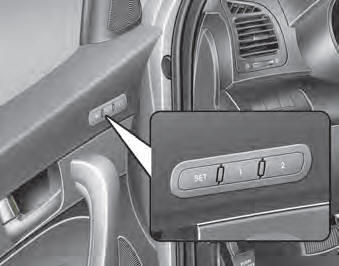

Storing positions into memory using the buttons on the door
Storing driver’s seat positions
1. Shift the shift lever into P (for Automatic transaxle) while the engine start/stop button is ON or ignition switch ON.
2. Adjust the driver’s seat and outside rearview mirror comfortable for the driver.
3. Press SET button on the control panel. The system will beep once.
4. Press one of the memory buttons (1 or 2) within 5 seconds after pressing the SET button. The system will beep twice when memory has been successfully stored.
WARNING
Use caution when recalling the adjustment memory while sitting in the vehicle. Push the seat position control switch to the desired position immediately if the seat moves too far in any direction.
Recalling positions from memory
1. Shift the shift lever into P (for Automatic transaxle) while the engine start/stop button is ON or ignition switch ON.
2. To recall the position in the memory, press the desired memory button (1 or 2). The system will beep once, then the driver’s seat will automatically adjust to the stored position.
Adjusting the control switch for the driver’s seat while the system is recalling the stored position will cause the movement to stop and move in the direction that the control switch is moved.
Easy access function (if equipped)
The system will move the driver's seat automatically as follows:

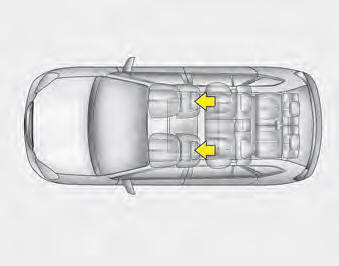

Headrest (for front seat)
The driver's and front passenger's seats are equipped with a headrest for the occupant's safety and comfort.
The headrest not only provides comfort for the driver and front passenger, but also helps protect the head and neck in the event of a rear collision.
WARNING

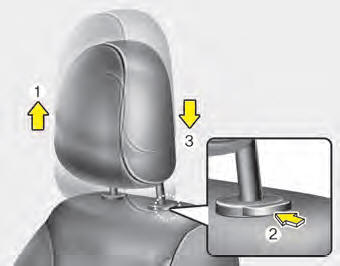

Adjusting the height up and down
To raise the headrest, pull it up to the desired position (1). To lower the headrest, push and hold the release button (2) on the headrest support and lower the headrest to the desired position (3).

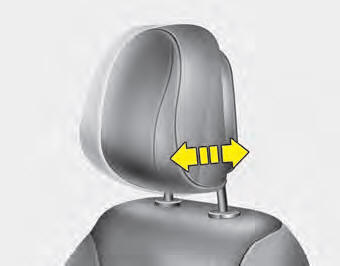

Adjusting the angle (if equipped)
The headrest angle may be adjusted by pulling or pushing the lower part of the headrest.
Adjust the headrest so that it properly supports the head and neck.
CAUTION
Excessive pulling or pushing may damage the headrest.

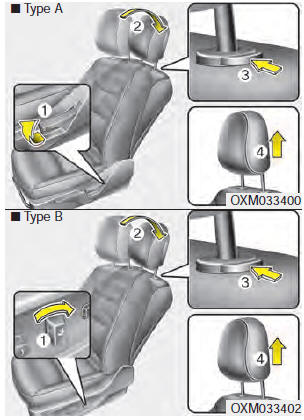

Removal and installation
To remove the headrest:
1. Recline the seatback (2) with the recline lever or switch (1).
2. Raise headrest as far as it can go.
3. Press the headrest release button (3) while pulling the headrest up (4).
WARNING
NEVER allow anyone to ride in a seat with the headrest removed.

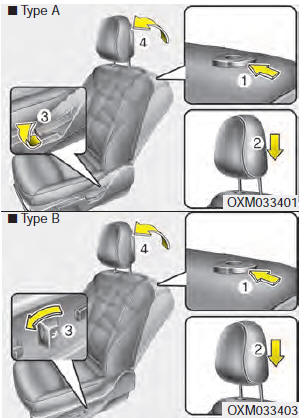

To reinstall the headrest :
1. Put the headrest poles (2) into the holes while pressing the release button (1).
2. Recline the seatback (4) with the recline lever or switch (3).
3. Adjust the headrest to the appropriate height.
WARNING
Always make sure the headrest locks into position after reinstalling and adjusting it properly.

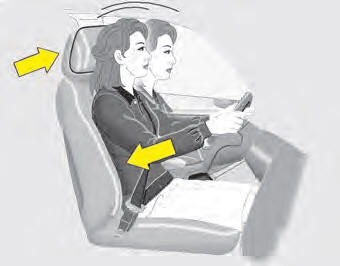

Active headrest
The active headrest is designed to move forward and upward during a rear impact. This helps prevent the driver's and front passenger’s heads from moving backward and thus helps minimize neck injuries.
For your safety, the active headrest can’t be removed. If there is any problem with the active headrest, take your vehicle to an authorized Kia dealer and have the system checked.
WARNING
A gap between the seat and the headrest release button may appear when sitting on the seat or when you push or pull the seat. Be careful not to get your finger, etc. caught in the gap.
