Kia Sorento: Dynamic Damper Components - Driveshaft Assembly - Driveshaft and axle - Kia Sorento XM 2011-2025 Service ManualKia Sorento: Dynamic Damper Components

Second Generation XM (2011-2025) / Kia Sorento XM 2011-2025 Service Manual / Driveshaft and axle / Driveshaft Assembly / Dynamic Damper Components

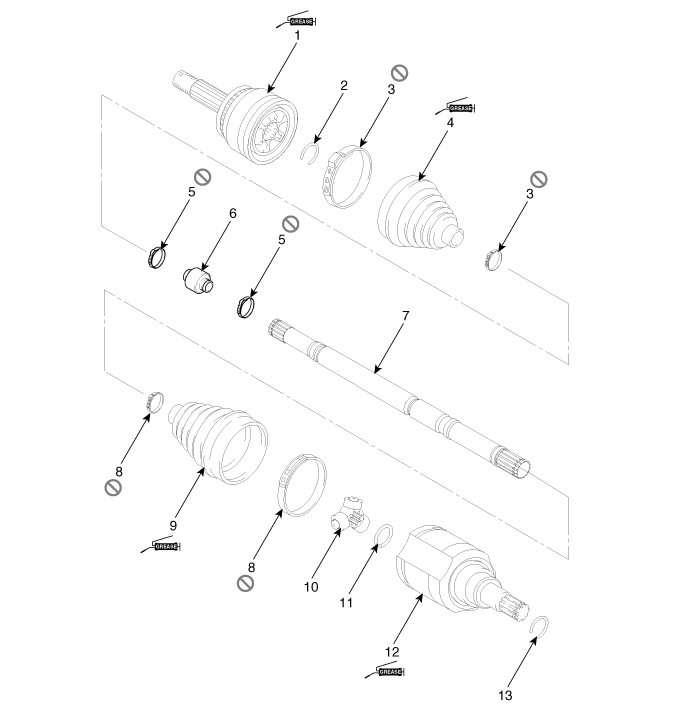

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot
5. Dynamic damper band
6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot
10. Spider assembly
11. Retainer ring
12. TJ housing
13. Housing circlip

TJ Joint Installation
1. Wrap tape around the driveshaft spline(TJ) to prevent damage to the boot. 2. Using the alignment marks (D) made during disassembly as a ...

Dynamic Damper Removal
1. Remove the front driveshaft. (Refer to Driveshaft Assembly - “Front Driveshaft”) 2. Remove the TJ joint assembly. (Refe ...
