Second Generation XM (2011-2024) / Kia Sorento XM 2011-2024 Service Manual / Engine Mechanical System / Engine And Transmission Assembly / Engine Room Under Cover Components

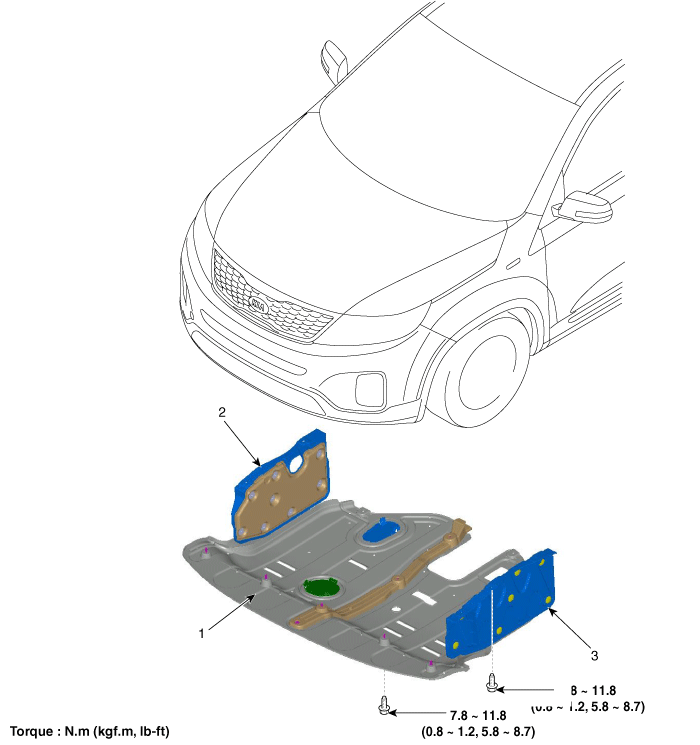

| 1. Under Cover 2. Side Cover (RH) |
3. Side Cover (LH) |
Engine Cover Removal and Installation
1.
Remove the engine cover (A).
2.
Install in the reverse order of removal.
...
Engine Room Under Cover Removal and Installation
1.
Unfasten the fasteners and bolts and then remove the engine room under
cover (A).
Tightening torque:
7.8 ~ 11.7 N.m (0.8 ~ 1.2 kgf ...
