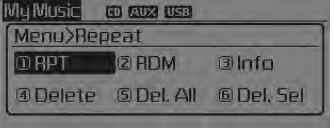

In My Music mode, press the
key to set the Repeat, Random, Information,
Delete, Delete All, and Delete Selection features.
Repeat
Press the key
Set [
RPT] through the TUNE knob or
key.
Repeats the currently playing song.
❈ Press RPT again to turn repeat off.
Random
Press the key
Set [ RDM] through the
TUNE knob or
key.
Plays all songs in random order.
❈ Press RDM again to turn random off.
Information
Press the key
Set [
Info] through the
TUNE knob or
key.
Displays information of the current song.
❈ Press the
key to turn off info display.

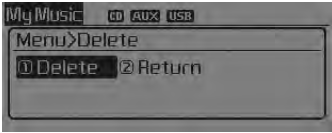

Delete
Press the
key Set [
Delete] through the
TUNE knob or
key.
Deletes currently playing file
In the play screen, pressing delete will delete the currently playing song.

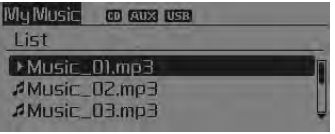

Deletes file from list
➀ Select the file you wish to delete by using the TUNE knob.
➁ Press the key
and select the delete menu to delete the selected file.
Delete All
Press the key
Set [
Del.All] through the
TUNE knob or
key.
Deletes all songs of My Music.

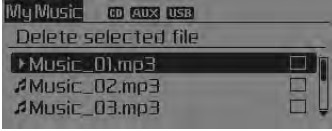

Delete Selection
Press the key
Set [Del.Sel] through the
TUNE knob or
key.
Songs within My Music are selected and deleted.
➀ Select the songs you wish to delete from the list.
➁ After selecting, press
key and select the delete menu.
My Music
AUX

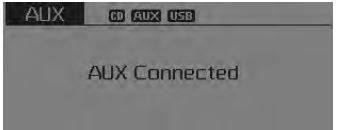

AUX is used to play external MEDIA currently connected with the AUX terminal.
AUX mode will automatically start when an external device is connected with the AUX terminal.
If an external device is connected, you can also press the key to change to AUX mode.
❈ AUX mode cannot be started unless there is an external device connected to the AUX terminal.
AUX
Fully insert the AUX cable into the AUX terminal for use.
