Kia Sorento: SRS Care
The SRS is virtually maintenancefree and so there are no parts you can safely
service by yourself. If the SRS air bag warning light does not illuminate, or continuously
remains on, have your vehicle immediately inspected by an authorized Kia dealer.
Any work on the SRS system, such as removing, installing, repairing, or any work
on the steering wheel, the front passenger’s panel, front seats and roof rails must
be performed by an authorized Kia dealer. Improper handling of the SRS system may
result in serious personal injury.
WARNING
- Modification to SRS components or wiring, including the addition of any
kind of badges to the pad covers or modifications to the body structure, can
adversely affect SRS performance and lead to possible injury.
- For cleaning the air bag pad covers, use only a soft, dry cloth or one
which has been moistened with plain water. Solvents or cleaners could adversely
affect the air bag covers and proper deployment of the system.
- No objects should be placed over or near the air bag modules on the steering
wheel, instrument panel, and the front passenger's panel above the glove box,
because any such object could cause harm if the vehicle is in a crash severe
enough to cause the air bags to inflate.
- If the air bags inflate, they must be replaced by an authorized Kia dealer.
- Do not tamper with or disconnect SRS wiring, or other components of the
SRS system. Doing so could result in injury, due to accidental inflation of
the air bags or by rendering the SRS inoperative.
- If components of the air bag system must be discarded, or if the vehicle
must be scrapped, certain safety precautions must be observed. An authorized
Kia dealer knows these precautions and can give you the necessary information.
Failure to follow these precautions and procedures could increase the risk of
personal injury.
- If your vehicle was flooded and has soaked carpeting or water on flooring,
you shouldn't try to start the engine; have the vehicle towed to an authorized
Kia dealer.
Additional safety precautions
- Never let passengers ride in the cargo area or on top of a foldeddown back
seat. All occupants should sit upright, fully back in their seats with their
seat belts on and their feet on the floor.
- Passengers should not move out of or change seats while the vehicle is moving.
A passenger who is not wearing a seat belt during a crash or emergency stop
can be thrown against the inside of the vehicle, against other occupants, or
out of the vehicle.
- Each seat belt is designed to restrain one occupant. If more than one person
uses the same seat belt, they could be seriously injured or killed in a collision.
- Do not use any accessories on seat belts. Devices claiming to improve occupant
comfort or reposition the seat belt can reduce the protection provided by the
seat belt and increase the chance of serious injury in a crash.
- Passengers should not place hard or sharp objects between themselves and
the air bags. Carrying hard or sharp objects on your lap or in your mouth can
result in injuries if an air bag inflates. • Keep occupants away from the air
bag covers. All occupants should sit upright, fully back in their seats with
their seat belts on and their feet on the floor. If occupants are too close
to the air bag covers, they could be injured if the air bags inflate.
- Do not attach or place objects on or near the air bag covers. Any object
attached to or placed on the front or side air bag covers could interfere with
the proper operation of the air bags.
- Do not modify the front seats. Modification of the front seats could interfere
with the operation of the supplemental restraint system sensing components or
side air bags.
- Do not place items under the front seats. Placing items under the front
seats could interfere with the operation of the supplemental restraint system
sensing components and wiring harnesses.
- Never hold an infant or child on your lap. The infant or child could be
seriously injured or killed in the event of a crash. All infants and children
should be properly restrained in appropriate child safety seats or seat belts
in the rear seat.
WARNING
- Sitting improperly or out of position can cause occupants to be shifted
too close to a deploying air bag, strike the interior structure or be thrown
from the vehicle resulting in serious injury or death.
- Always sit upright with the seatback in an upright position, centered
on the seat cushion with your seat belt on, legs comfortably extended and your
feet on the floor.
- Always have the ignition OFF when the vehicle is being towed or where
it may otherwise be tilted, since the side and/or curtain airbags may inflate
if the sensors interpret those tilt angles as a potential rollover.
- Be careful not to cause impact to the doors when the ignition is ON.The
air bags may inflate.
Adding equipment to or modifying your air bag-equipped vehicle
If you modify your vehicle by changing your vehicle's frame, bumper system, front
end or side sheet metal or ride height, this may affect the operation of your vehicle's
air bag system.

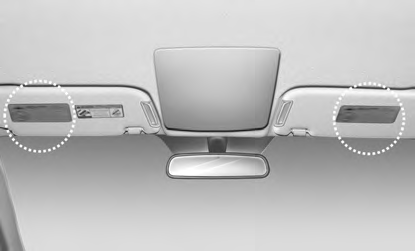

Air bag warning label
Air bag warning labels, some required by the U.S. National Highway Traffic Safety
Administration (NHTSA), are attached to the sunvisor to alert the driver and passengers
of potential risks of the air bag system.
Curtain air bags are located along both sides of the roof rails above the front
and rear doors.
They are designed to help protect occupants in certain side impacts and to help
prevent them from e ...
