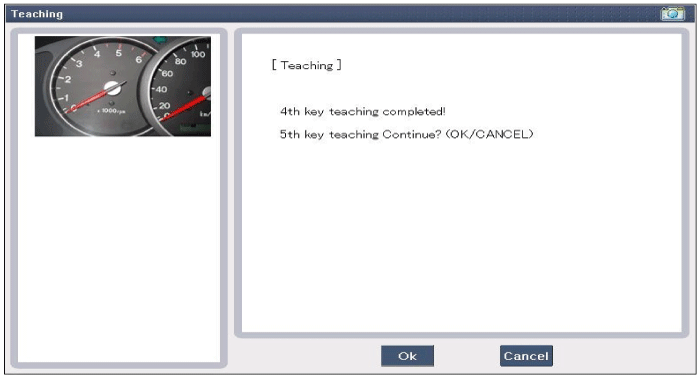

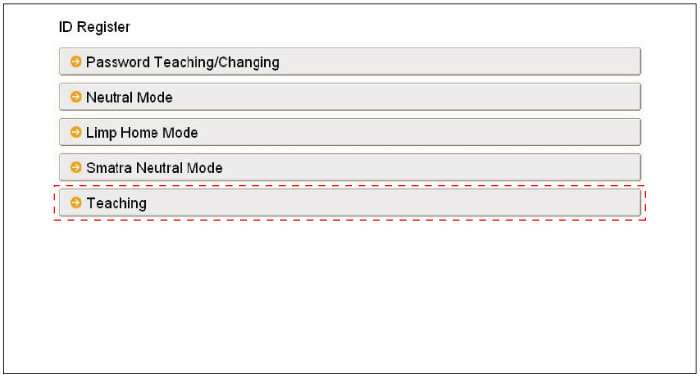

Key Teaching Procedure
Key teaching must be done after replacing a defective PCM(ECM)
or when providing additional keys to the vehicle owner.

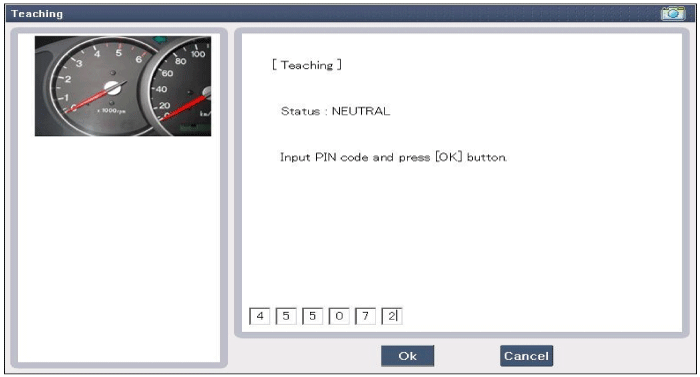

The procedure starts with an PCM(ECM) request for vehicle specific
data (PIN code: 6digits) from the tester. The "virgin" PCM(ECM) stores
the vehicle specific data and the key teaching can be started. The "learnt"
PCM(ECM) compares the vehicle specific data from the tester with the
stored data. If the data are correct, the teaching can proceed.
If incorrect vehicle specific data have been sent to the PCM(ECM)
three times, the PCM(ECM) will reject the request of key teaching for
one hour. This time cannot be reduced by disconnecting the battery or
any other manipulation. After reconnecting the battery, the timer starts
again for one hour.

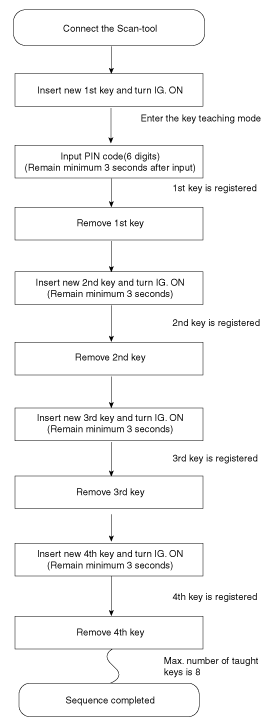

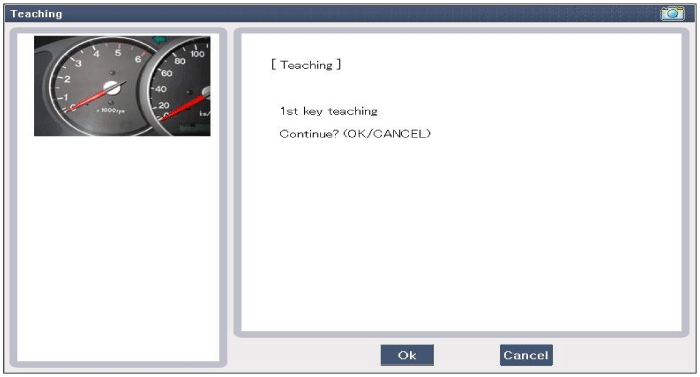

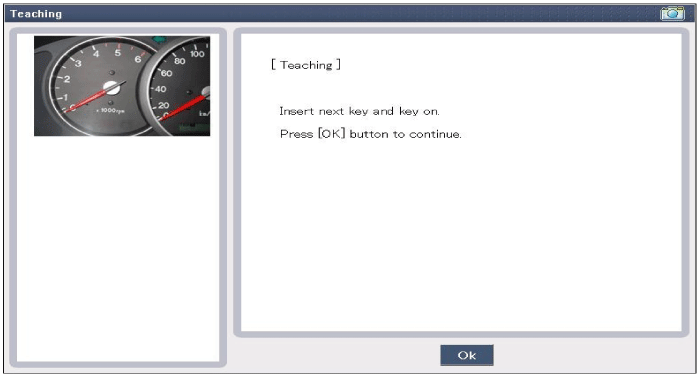

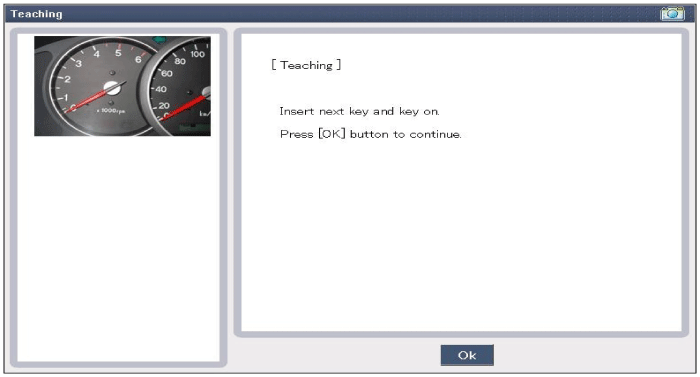

The key teaching is done by ignition on with the key and additional
tester commands. The PCM(ECM) stores the relevant data in the EEPROM
and in the transponder. Then the PCM(ECM) runs the authentication required
for confirmation of the teaching process. The successful programming
is then confirmed by a message to the tester.
If the key is already known to the PCM(ECM) from a previous teaching,
the authentication will be accepted and the EEPROM data are updated.
There is no changed transponder content (this is impossible for a learnt
transponder).
The attempt to repeatedly teach a key, which has been taught already
during the same teaching cycle, is recognized by the PCM(ECM). This
rejects the key and a message is sent to the tester.
The PCM(ECM) rejects invalid keys, which are presented for teaching.
A message is sent to the tester. The key can be invalid due to faults
in the transponder or other reasons, which result from unsuccessful
programming of data. If the PCM(ECM) detects different authenticators
of a transponder and an PCM(ECM), the key is considered to be invalid.
The maximum number of taught keys is 8
If an error occurs during the Immobilizer Service Menu, the PCM(ECM)
status remains unchanged and a specific fault code is stored.
If the PCM(ECM) status and the key status do not match for teaching
of keys, the tester procedure will be stopped and a specific fault code
will be stored at PCM(ECM).
|
Password Teaching/changing
| 1. |
User Password Teaching Procedure
The user password for limp home is taught at the service station.
The owner of the vehicle can select a number with four digits.
The user password teaching is only accepted by a "learnt" PCM(ECM).
Before first teaching of user password to an PCM(ECM), the status of
the password is "virgin" No limp home function is possible.
The teaching is started by ignition on, with a valid key(learnt
key) and sending the user password by tester. After successful teaching,
the status of the user password changes from "virgin" to "learnt"
The learnt user password can also be changed. This can be done
if the user password status is "learnt" and the tester sends authorization
of access, either the old user password or the vehicle specific data.
After correct authorization, the PCM(ECM) requests the new user password.
The status remains "learnt" and the new user password will be valid
for the next limp home mode.
If wrong user passwords or wrong vehicle specific data have been
sent to the PCM(ECM) three times continuously or intermittently, the
PCM(ECM) will reject the request to change the password for one hour.
This time cannot be reduced by disconnecting the battery or any other
actions. After reconnecting the battery, the timer starts again for
one hour.
|

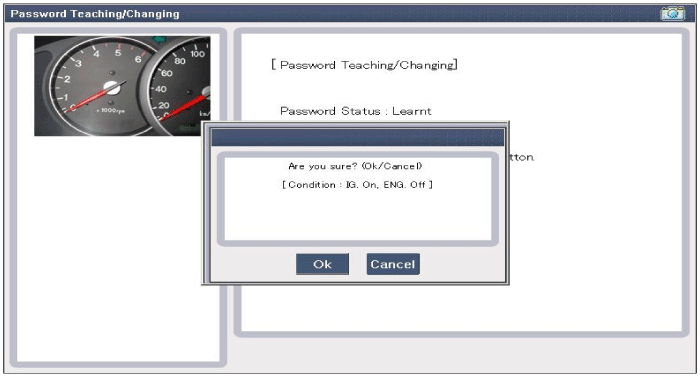

| 2. |

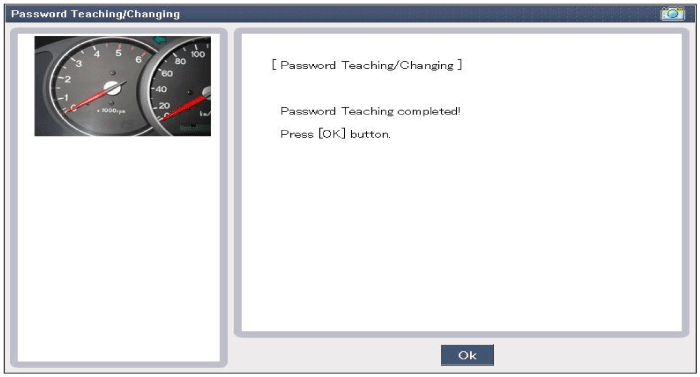

User password teaching
※ In case of putting wrong password, retry from first step after
10 seconds.
|

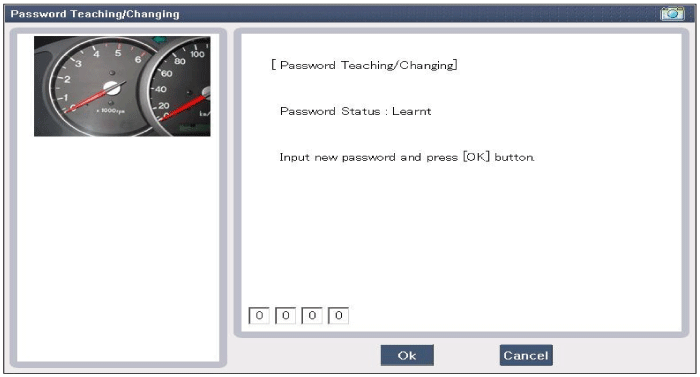

| 3. |
User password changing
|
Replacement
Problems And Replacement Parts:
Problem
Part set
Scan tool required?
All keys have been lost
Blank key (4)
YES
Antenna coil unit does n ...
Limp Home Function
1.
Limp Home By Tester
If the PCM(ECM) detects the fault of the SMARTRA or transponder,
the PCM(ECM) will allow limp home function of the immobilizer. Limp
hom ...
