Description

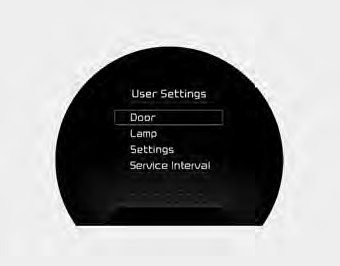

On this mode, you can change setting of the doors, lamps, and so on.
Door
Auto Door Lock (if equipped)
The auto door lock operation will be deactivated.
All doors will be automatically locked when the vehicle speed exceeds 9.3mph (15km/h).
All doors will be automatically locked if the automatic transaxle shift lever is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position.
Auto Door Unlock (if equipped)
The auto door unlock operation will be canceled.
All doors will be automatically unlocked when the ignition key is removed from ignition switch or Engine Start/Stop Button is set to the OFF position.
All doors will be automatically unlocked if the automatic transaxle shift lever is shifted to the P (Park) position.
Two Press Unlock (if equipped)
The two press unlock function will be deactivated. Therefore, all doors will unlock if the door is unlocked.
The driver’s door will unlock if the door is unlocked. When the door is unlocked again within 4 seconds, all doors will unlock.
Horn Feedback (if equipped)
The Horn feedback operation will be deactivated.
After locking the door by pressing the lock button on the transmitter, if you press the lock button again within 4 seconds, the warning sound will operate once to indicate that all doors are locked.
Lamp
Head Lamp Delay (if equipped) If this item is checked, the headlamp delay and headlamp welcome function will be activated.
Welcome Light (if equipped)
If this item is checked, the welcome light function of the pocket lamp will be activated.
Auto Triple Turn (One-touch triple turn signal) (if equipped)
If this item is checked, the lane change signals will blink 3 times when the turn signal lever is moved slightly.
Settings
Temperature Unit
Convert the temperature unit from °C to °F or from °F to °C.
Welcome Sound
If this item is checked, the welcome sound function will be activated.
Seat Easy Access (if equipped)
If this item is checked, the driver’s seat will automatically move forward or rearward for the driver to enter or exit the vehicle comfortably.
AVG Fuel Eco Reset
The average fuel economy will reset automatically when refueling.
The average fuel economy will not reset automatically whenever refueling.

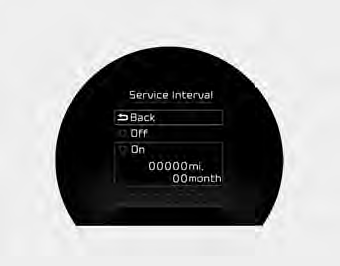

Service Interval
On this mode, you can activate the service interval function with mileage (mi. or km) and period (months).

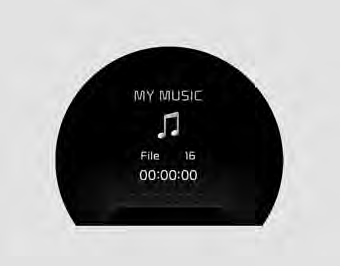

A/V Mode (if equipped)
This mode displays the state of the A/V system.

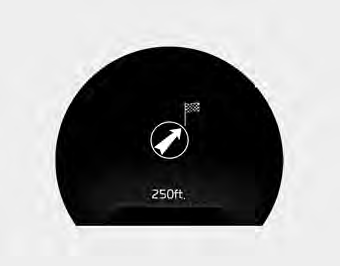

Turn By Turn Mode (if equipped)
This mode displays the state of the navigation.
Replacement
The injector combustion seal should be replaced new one to prevent leakage
after removing the injector.
1.
Remove the combustion seal (A) with a wire cutter.
...
Parking Brake Lever Assembly Installation
1.
Install the parking brake lever assembly (A).
Tightening torque :
19.6 ~ 29.4 N.m (2.0 ~ 3.0 kgf.m, 14.5 ~ 21.7 lb-ft)
...
Components
1. Steering column shaft
2. ECU
3. Motor
4. Steering gear box
...
