1. |
Check DTC(s) and clear if exist.
|
2. |

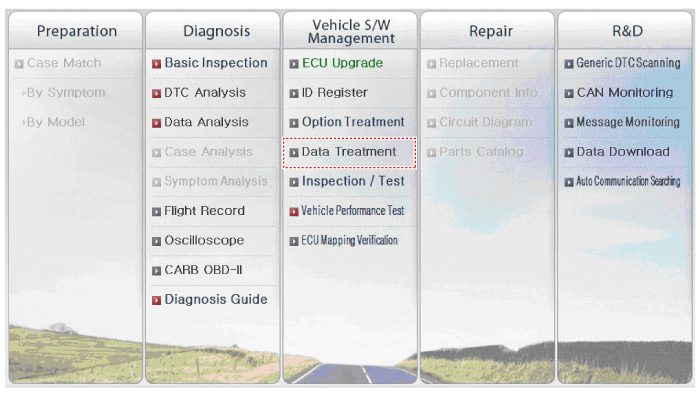

Select "Data Treatment", to reset the ETC adaptive value.
|
3. |

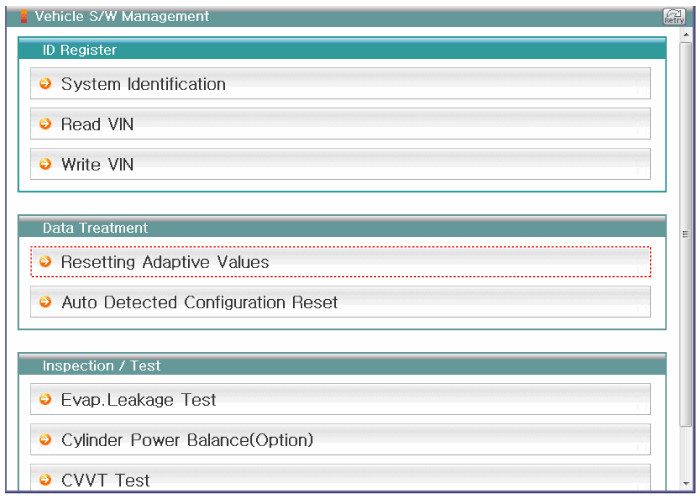

Select "Resetting adaptive values".
|
4. |

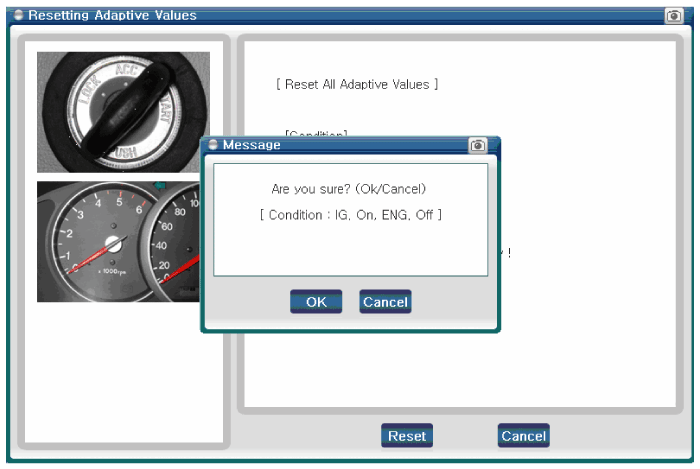

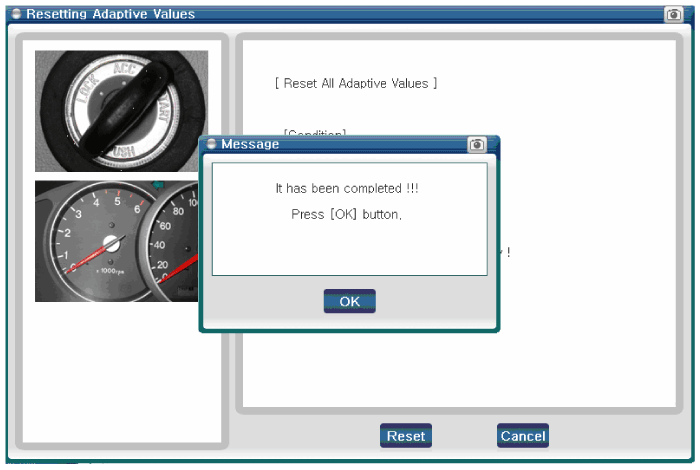

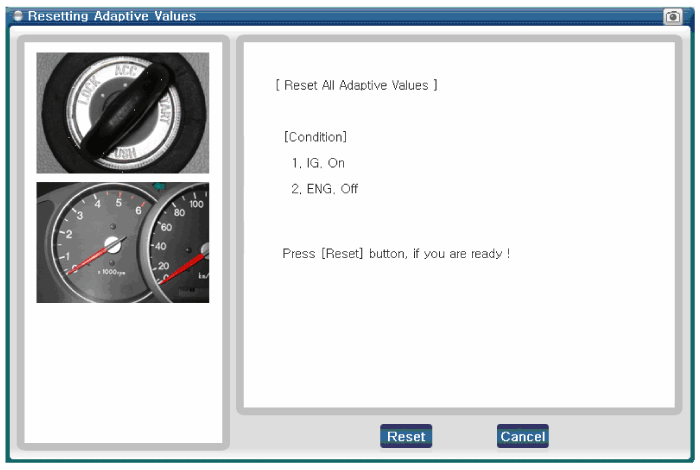

Select "Reset", then wait 10 seconds after turning ignition key
off (Relay OFF).
|
5. |
Wait for 5 seconds after turning the ignition ON (ETC adaptive
value relearn).
If equipped with Button Engine Start System, push the engine start/stop
button 2 times without depressing the brake pedal. This will allow the
ECM to automatically learn the throttle valve position; then wait for
approximately 5 seconds.
|
6. |
Start engine.
|
7. |
Recheck DTC(s).
|
