Kia Sorento: Front Wheel Transfer Assembly Components Location
Second Generation XM (2011-2024) / Kia Sorento XM 2011-2024 Service Manual / 4 Wheel Drive (4WD) System / Transfer Assembly / Front Wheel Transfer Assembly Components Location

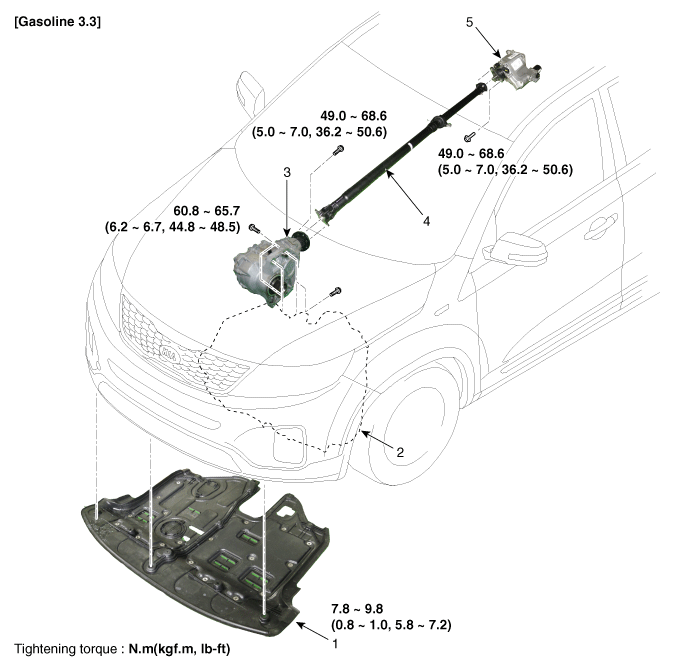

| 1. Under cover 2. Transaxle Assembly 3. Transfer assembly |
4. Propeller shaft 5. Coupling assembly |

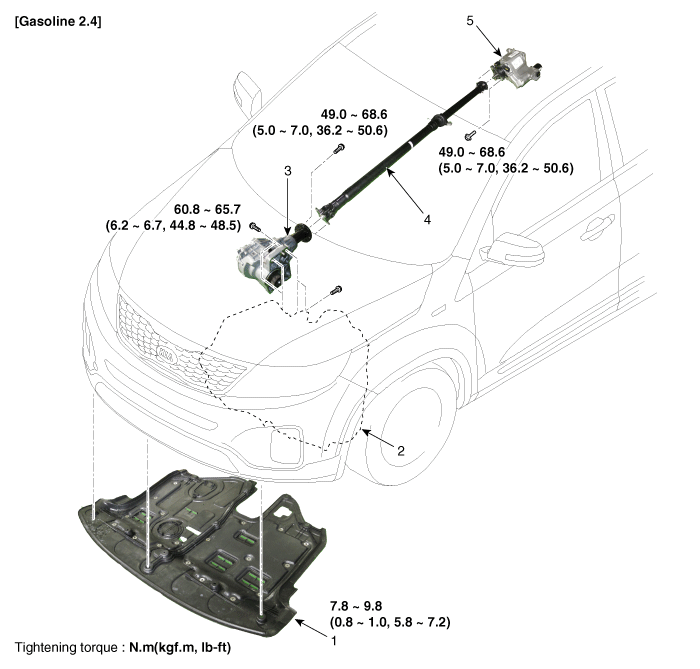

| 1. Under cover 2. Transaxle Assembly 3. Transfer assembly |
4. Propeller shaft 5. Coupling assembly |
Transfer Fluid Replacement
Change
Normal Use
Severe Use
No service required
...
Front Wheel Transfer Assembly Removal
It is not recommended to overhaul the transfer assembly because
a special three-dimensional measuring instrument is requ ...
