Using Sirius TM Satellite Radio
Your Kia vehicle is equipped with a 3 month complimentary period of SIRIUSTM Satellite Radio so you have access to over 130 channels of music, information, and entertainment programming.
Activation
In order to extend or reactivate your subscription to SIRIUSTM Satellite Radio, you will need to contact SIRIUSTM Customer Care at 800-643- 2112. Have your 12 digit SID (Sirius Identification Number) / ESN (Electronic Serial Number) ready. To retrieve the SID / ESN, turn on the radio, press the [RADIO] button, and tune to channel zero.
Please note that the vehicle will need to be turned on, in Sirius mode, and have an unobstructed view of the sky in order for the radio to receive the activation signal.
Seek
Press the
key
Scan
Press the
key
Shortly pressing the key (under 0.8 seconds): Previews each broadcast for 5 seconds each
❈ Press the
key again to continue listening to the current frequency
❈ If the “Category” icon is displayed, channels are changed within the current category.

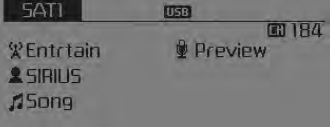

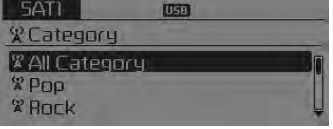

Category
Press the
key
Set through the
TUNE knob
❈ If channel is selected by selecting category, then the “CATEGORY” icon is displayed at the top of the screen.
Preset
Press the
key
~
• Shortly pressing the key
(under 0.8 seconds): Plays the frequency saved in the corresponding key. • Pressing
and holding the key (over 0.8 seconds): Pressing and holding the desired key from
~
will save the current broadcast
to the selected key and sound a BEEP.
Troubleshooting
1. Antenna Error
If this message is displayed, the antenna or antenna cable is broken or unplugged. Please consult with your Kia dealership.
2. Acquiring Signal
If this message is displayed, it means that the antenna is covered and that the SIRIUSTM Satellite Radio signal is not available. Ensure the antenna is uncovered and has a clear view of the sky.
Tune
Menu
Select category menu through the
TUNE knob
Press the key
Select [
Info] through
the TUNE knob
or key

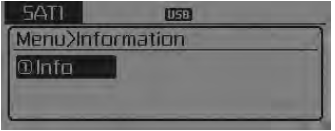

Info (Information)
Displays the Artist/Song info of the current song.
