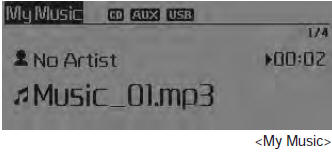

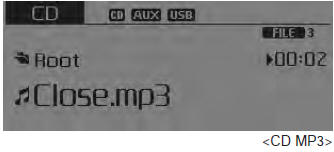

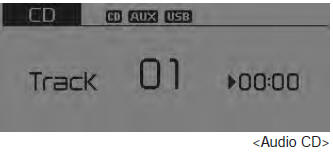

Audio CD / MP3 CD / USB /
iPod® / My Music
Press the
key to change the mod mode in order of CD ➟ USB(iPod®) ➟ AUX ➟ My Music ➟ BT Audio.

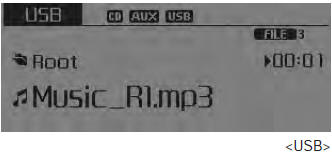

The folder/file name is displayed on the screen.
❈ The CD is automatically played when a CD is inserted.
❈ The USB music is automatically played when a USB is connected.
Repeat
While song (file) is playing
(RPT) key
Audio CD, MP3 CD, USB, iPod®, My Music mode: RPT on screen
To repeat one song (press the key): Repeats the current song.
MP3 CD, USB mode: FLD.RPT on screen
To repeat folder (pressing twice): repeats all files within the current folder.
❈ Press the key
again to turn off repeat.
Random
While song (file) is playing
(RDM) key
Audio CD, My Music mode: RDM on screen
Random (press the key) : Plays all songs in random order.
MP3 CD, USB mode: FLD.RDM on screen
Folder Random (press the key) : Plays all files within the current folder in random order. iPod® mode: ALL RDM on screen
All Random (press the key) : Plays all files in random order. MP3 CD, USB : ALL RDM on screen
All Random (pressing twice): Plays all files in random order.
❈ Press the key again to turn off repeat.
Changing Song/File
While song (file) is playing
key
Shortly pressing the key : Plays the current song from the beginning.
❈ If the key is
pressed again within 2 second, the previous song is played.
Pressing and holding the key (over 0.8 seconds): Rewinds the song.
While song (file) is playing
key
Scan
While song (file) is playing
key
Shortly pressing the key : Scans all songs from the next song for 10 seconds each.
❈ Press the key again to turn off.
❈ The SCAN function is not supported in iPod® mode.
Folder Search : MP3 CD, USB Mode
While file is playing
(Folder Up) key
Searches the next folder. While file is playing
(Folder Down) key
Searches the parent folder.
❈ If a folder is selected by pressing the
TUNE knob, the first file within the
selected folder will be played.
❈ In iPod® mode, moves to the Parent Folder.
Searching Songs (File)

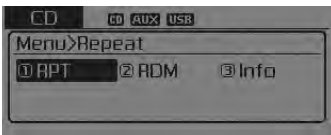

Menu : Audio CD
Press the CD MP3 mode
key to set the Repeat, Random, Information
features.
Repeat
Press the key
Set [
RPT] through the
TUNE knob or
key to repeat the current song.
❈ Press RPT again to turn off.
Random
Press the key
Set [
RDM] through the
TUNE knob or
key to randomly play songs within
the current folder.
❈ Press RDM again to turn off.
Information
Press the key
Set [
Info] through the
TUNE knob or
key to display information of the
current song.
❈ Press the key
to turn off info display.

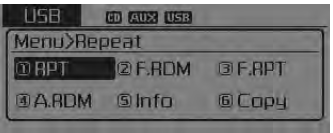

Menu : MP3 CD / USB
Press the CD MP3 mode
key to set the Repeat, Folder Random,
Folder Repeat, All Random, Information, and Copy features.
Repeat
Press the
key Set [
RPT] through the
TUNE knob or
key to repeat the current song.
❈ Press RPT again to turn off.
