Kia Sorento: Direct Electro Hydraulic Actuator Coupling Components
Second Generation XM (2011-2024) / Kia Sorento XM 2011-2024 Service Manual / 4 Wheel Drive (4WD) System / Coupling Assembly / Direct Electro Hydraulic Actuator Coupling Components

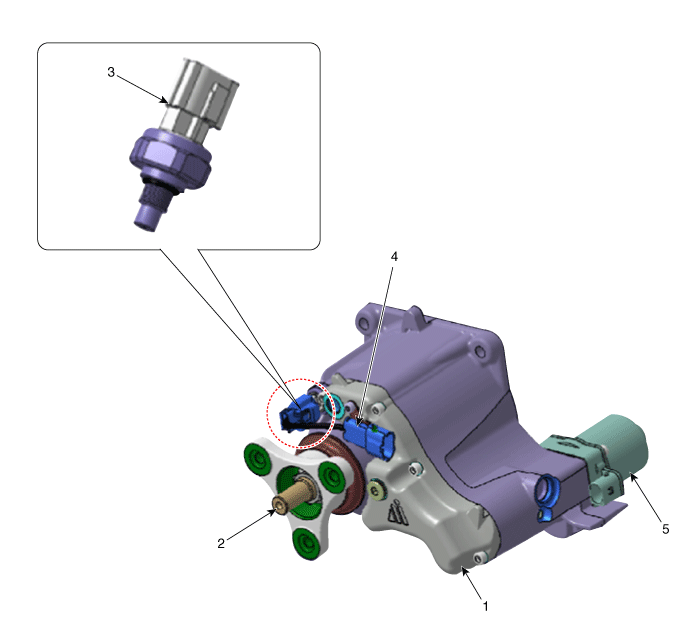

| 1. Coupling assembly 2. Input shaft 3. Pressure sensor |
4. Extension wiring 5. Oil hydraulic Motor(Actuator) |
Direct Electro Hydraulic Actuator Coupling Component Location
1. Coupling assembly
2. Propeller shaft
3. Transfer assembly
...
Direct Electro Hydraulic Actuator Coupling Description
4WD ECU processes signals from various sensors and determines the current
road and driving conditions. The ECU then utilizes this information to implement
precision control over the 4WD coupl ...
